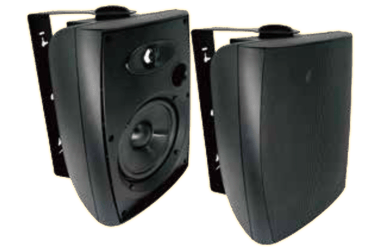

OUTDOOR SPEAKER

OD-525A

Technical Specification

Woofer : 5.25″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 80Hz-22KHz
Sensitivity : 87dB at 1W/1M
Recommended amplifier power : 10 - 25 watts RMS
Impedance : 8 ohm

Type : Wall Mount

OD-625A

Technical Specification

Woofer : 6.5″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 70Hz-22KHz
Sensitivity : 88dB at 1W/1M
Recommended amplifier power : 10 - 30 watts RMS
Impedance : 8 ohm

Type : Wall Mount

SD-525

Technical Specification

Woofer : 5.25″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 80Hz-22KHz
Sensitivity : 87dB at 1W/1M
Recommended amplifier power : 10 - 25 watts RMS
Impedance : 8 ohm

SD-625

Technical Specification

Woofer : 6.5″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 70Hz-22KHz
Sensitivity : 88dB at 1W/1M
Recommended amplifier power : 10 - 30 watts RMS
Impedance : 8 ohm

DY-6602A

Technical Specification

Woofer : 6.5″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 85Hz-22KHz
Sensitivity : 87dB at 1W/1M
Recommended amplifier power : 10 - 25 watts RMS
Impedance : 8 ohm

DY-6503B

Technical Specification

Woofer : 6.5″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 85Hz-22KHz
Sensitivity : 88dB at 1W/1M
Recommended amplifier power : 10 - 30 watts RMS
Impedance : 8 ohm

DY-8801C

Technical Specification

Woofer : 8″ Injection Cone,
Tweeter : 1"Aluminum DOME
Frequency response : 80Hz-22KHz
Sensitivity : 88dB at 1W/1M
Recommended amplifier power : 10 - 30 watts RMS
Impedance : 8 ohm
